A-A-52519 Scrappers \(Pigs\), Pipeline: Cleaning And Batching \(Metric\)This CID covers requirements for fluid-propelled cleaning and batching scrapers, hereinafter called ┬┐pigs┬┐, for all hydrocarbon pipelines. Cleaning pigs shall be capable of cleaning internal pipe deposits such as wax, paraffin, sludge, mud, and calcium. Batching pigs shall be capable of separating dissimilar fluids such as gasoline, kerosene or diesel and emptying pipelines. Pigs shall be available for 101.6 millimeter \(mm\) \(4-inch\), 152,4 mm \(6-inch\), 203.2 mm \(8-inch\), and 304.8 mm \(12-inch\) nominal size pipelines.

Pages 1 - 2 - 3 - 4

A-A-52519

7.2 Ordering data. Acquisition documents must specify the following:

Title, number, and date of this CID.

Issue of the DODISS to be cited in the solicitation,

Type, size, PIN, and quantity of pigs required,

Packaging requirements.

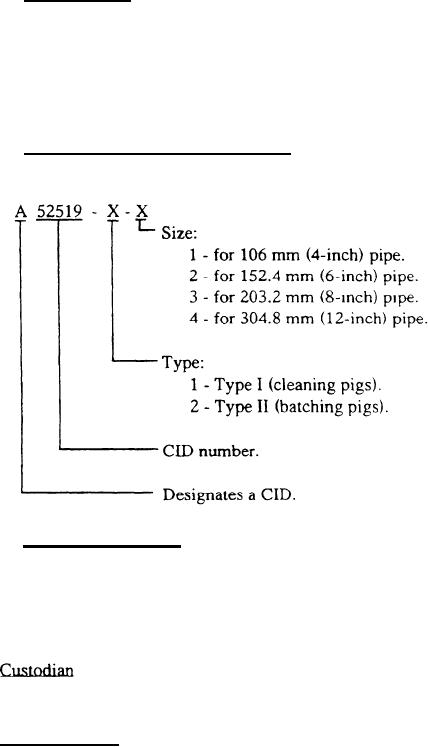

7.3 Part or identification number (PIN). The PINs to be used for pigs acquired to this CID are

created as follows:

7.4 Cross-reference data. Type I pigs conforming to this CID are interchangeable/substitutable

with cleaning elements conforming to MIL-C-14076B(ME).

CIVIL AGENCY COORDINATING ACTIVITY:

MILITARY INTERESTS:

GSA - FSS

PREPARING ACTIVITY:

Army - AT

ReviewActivity

DLA - CS

(Project 4940-0668)
