similar to figure 1. The vice jaw shall have a minimum opening of 5.5 in. The vise shall withstand
a load of 2000 inch-pounds (in-lb) (see 4.4.1).

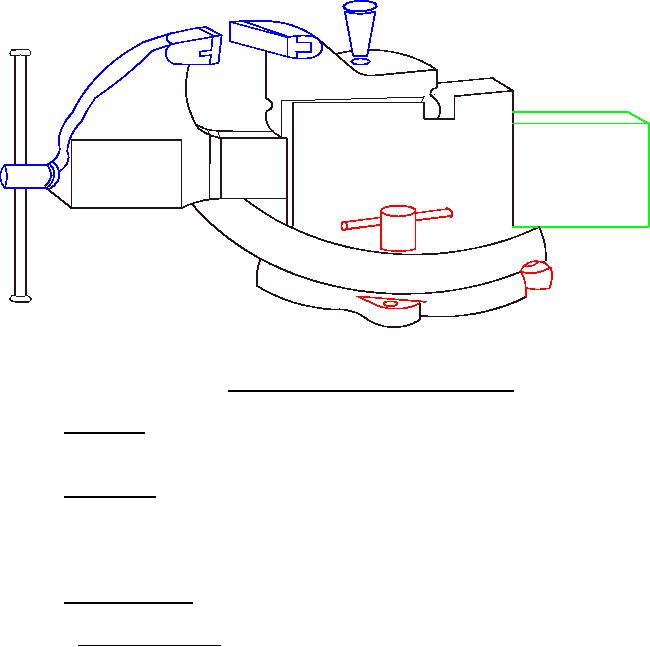

FIGURE 1. Machinist's swivel base, swivel jaw vise.
3.5 Water tank. A water tank with a minimum capacity of 15 gallons of water shall be
provided. The tank shall be equipped with a drain and drain valve (see 4.4.1).
3.6 Safety shield. A safety shield shall be furnished. The shield shall be cylindrical in
shape and of sufficient diameter to slide over the vise. The shield shall be mounted on a suitable
stand that will permit the shield to be lowered over the vise or raised and swung out of the way
when not in use (see 4.4.2).
3.7 Pneumatic system. The pneumatic system shall be arranged as shown in figure 2.
3.7.1 Pneumatic amplifier. An amplifier that requires no lubrication shall be provided.
The amplifier shall include a 5 cubic inch (in3) capacity receiver to permit precharging of the
system before beginning high pressure tests (see 4.4.3.2).
